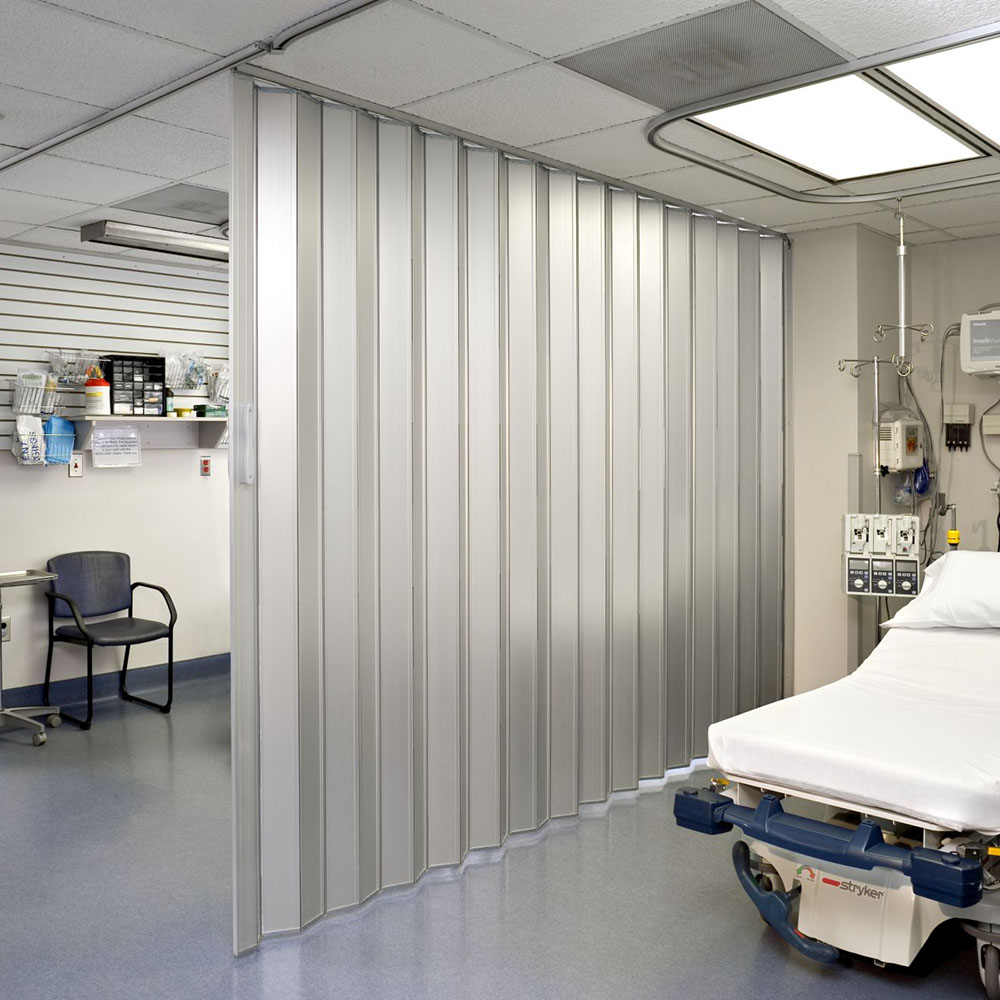

Time was, enhancing the security of an area or room meant settling for a dull, less-than-inviting door or enclosure. Not anymore. Woodfold's Alumifold Series 640 is the ideal choice for a variety of installations requiring not just strength, not just functionality, but also sleek, streamlined good looks. This Series incorporates the smooth operation of Woodfold's exclusive steel hardware hinge system to ensure smooth operation and exceptional strength and durability. Design options like solid or perforated aluminum panels in bronze, gold or clear (silver) finishes deliver the privacy and security you're looking for with eye-catching beauty.

Product Specifications

• Panels: 4-1/4" wide solid or perforated aluminum in bronze, clear (silver) or gold
• Panel Connectors: Flexible vinyl color-coordinated to panels
• Track: 1-1/8" x 1" aluminum, dark bronze, clear (silver) or gold finish; curvable option available
• Wheels: Nylon wheels on steel axles with ball bearings supplied as standard.
• Lead Post: 3/4" x 2-3/4" color coordinated to panel connectors
• Jamb Molding: 1" wide x 3/8" deep aluminum
• Latch: Deadlatch with thumbturn two sides; other options available
• Handles: Molded PVC with finger recess
• Width: No limitation
• Height: Bronze and gold up to 8'1"; clear up to 10'1"
• Stacking Space: 1-1/4" per foot plus 2-3/4" for lead post

How To Measure Your Door

Width of Door - Measure the width at the bottom, halfway up and at the top of the door and use the widest dimension you have. NOTE:  IF THE WIDEST DIMENSION IS AT THE BOTTOM OR CENTER YOU MAY HAVE TO TRIM THE SUSPENSION TRACK TO FIT YOUR OPENING AT THE TOP OF THE DOOR AS TRACK LENGTHS ARE MADE TO THE ORDERING WIDTH. This can be done with a hacksaw.

Height of Door - Measure from the top of the finished floor to the point where you are going to attach the track. Measure at 3 different points across the width of the opening and use the tightest dimension you have. Note: If this dimension differs more than 1/2" across the opening call to discuss how to arrive at an acceptable dimension.

All item(s) are custom made to order, it takes 24-48 hours for order processing, manufacturing time is 10 working days (2 weeks including weekends), lead times are subject to change without notice. Please allow 7-10 days for item(s) to arrive once shipped, we will advise tracking numbers as soon as the item(s) leave the manufacturing facility. This results in approximately 3 1/2 to 4 weeks until you receive your order. If items are custom stained or painted extended lead times are required, usually an additional 2 weeks after approval of submitted samples.

Free Shipping in the Continental United States. All over weight or large accordion doors are shipped via common carrier and are TAILGATE DELIVERY. This means that that the trucker will arrive in a large over the road truck and bring the crate to the tail end of his truck, it is your responsibility to remove the item from his truck.

Custom made products such as accordion doors, elevator doors, roll-up doors and shutters are custom-made to size and manufactured to your specifications. No refunds or exchanges are possible. Orders placed with standard lead-times allow 3 business days for changes to be made by contacting the manufacturer.

Orders that require custom material, logos or paints/stains cannot be cancelled or changed after ordered.

Rush orders cannot be changed or cancelled after the next business day. Once your acknowledgement is received with a ship date there are no returns.

Woodfold 640 Series:
Shop Drawings
Accordion Brochure
Footbolt Options
